CMX Sealed Hybrid And Modular Connector System

Molex Incorporated's CMX sealed hybrid and modular connector system offers high seal protection for extreme environments.

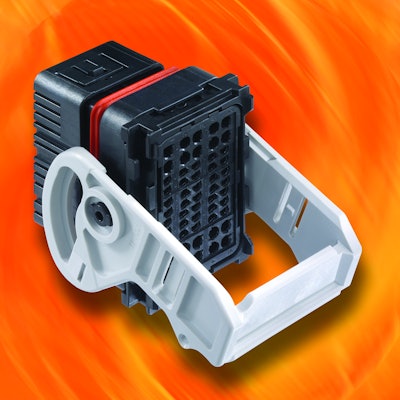

Cmx55cktfemailhgfinal 10287491

Building on the success of its CMC interconnect system, Molex Incorporated introduces the second generation sealed, hybrid, high-density and modular connector system – the CMX family using a CTX terminal system.

  • Fully protected seal offers high sealing performance
  • Works for transportation powertrain applications, such as those found in engine control units, automatic gear boxes, suspension controllers and electrical parking brakes
  • Remains protected before mating, and during mating and unmating operations
  • Available as a compact 5-row 55-circuit CMX connector and a 5-row 65-circuit CMX connector with additional sizes in development
  • Supports low and medium current using .635mm (.025 in.) and 1.50mm (.059 in.) CTX terminals
  • Matte seal is designed for high performing sealing function of CTX terminals and works with ISO and JASO wires
  • Features clean-body type design that performs in harsh environments, while serving low, medium and high current applications
  • High conductivity copper alloy allows stress relaxation and current carrying properties
  • Rear seal cover, which can be molded with breakable dummy-plugs for CTX terminal cavities, helps to reduce cycle time and applied costs for harness manufacturers
  • Allows flexibility for unused cavities
