D-Sub Combination Connectors

CONEC has expanded its line of D-sub combination connectors to include high density signal contact layouts.

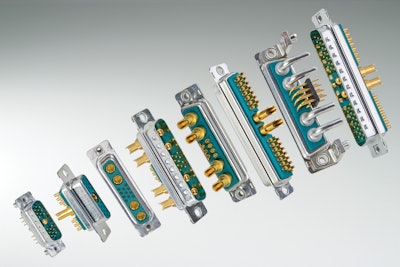

Dsubhdkomplett 10457192

CONEC, a manufacturer of connectors, has developed and expanded its combination mixed layout D-subminiature connector family by adding high density (size 22) signal contact layouts.

  • Available configurations include 19W1, 15W4 and 45W2, in straight solder pin and solder cup versions
  • Provides more flexibility for design engineers who need to get more signal contacts in a small space
  • For applications where power, coax and signal contacts are required
  • Can handle up to 3 amps at 60V
  • Rated from 10 amps to 40 amps
  • Coax contacts are available in 50 and 75 Ohm versions
  • Uses high reliability gold plated, copper alloy screw machine contacts
  • Other housing materials are available, such as copper alloy (for non-magnetic applications) or stainless steel (for harsh environment applications)
  • Insulator material is UL 94 V-0 rated paired with tin-plated steel housings
