CCM-20 Series High Density Rectangular Connectors

CW Industries introduces its CCM-20 series of high density rectangular connectors which feature enhanced retention and solder-ability.

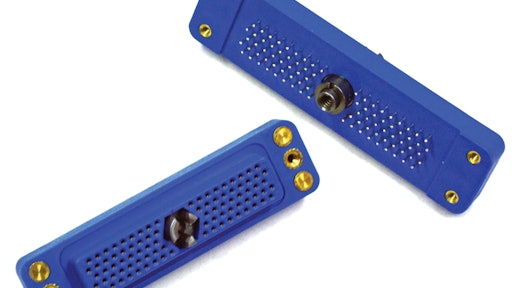

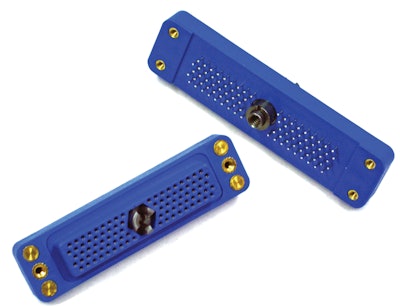

Connectorassembly 10623525

CW Industries announces the releas of its high density rectangular connectors with enhanced retention and solder-ability features.

  • Meets requirements of MIL-DTL-28804 and NAVSEA 3164341 and 3164342 specifications
  • Features 5 amps per contact rating (with a temperature rise of less than 30 C after three hours of each contact continuously conducting 5 amps)
  • Padded design provides for improved solder flow and for post solder visual inspection
  • Reduces FOD by eliminating other means such as washers or inserts to achieve a visual quality assurance check
  • Custom designed inserts offer enhanced retention to meet high altitude heat and shock vibration requirements
  • Meets a minimum 80 oz. torque requirement and an 80 lbs. axial pull out force
  • Pin counts of 38, 50, 88, 108 and 132 are available with a standard pin length of .250 ±0.025, and other lengths available upon request
  • Composition features glass-filled polyester with beryllium copper alloy contacts gold plated in mating area
  • Termination end is solder dipped over nickel plating
  • Applications include advanced missile systems, torpedoes, flight guidance systems and other sophisticated military electronics equipment
