Panel-Mount Connectors With Dip Solder Contacts

Binder-USA has added 7/8 in. panel-mount connectors to its Series 820 and 870 connectors.

February 17, 2012
Binder-USA

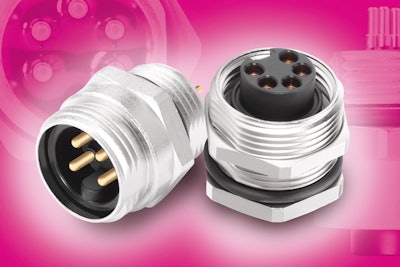

Pm 820 Fs Tl 10631225

Binder-USA announces the addition of 7/8 in. panel-mount connectors with dip solder contacts to the Series 820 and 870 connector family.

  • Dip solder contacts enable mounting to a PCB board
  • Well suited for power supplies, Fieldbus and Ethernet applications
  • Available in both male and female versions with 2+PE, 4 and 4+PE gold-plated contacts
  • Front- and rear-mountable positions allow for mounting from back or front of panel
  • Includes UL approval, and IP67 rating ensures connectors are protected while used in harsh environments
  • Mates with field-attachable connectors and cordsets to make complete connecting system



Request More Information
Fill out the form below to request more information about Panel-Mount Connectors With Dip Solder Contacts
