APD Series Transportation Connectors

ITT Interconnect Solutions has released its APD Series of transportation connectors which are sealed to IP67/IP69K specifications.

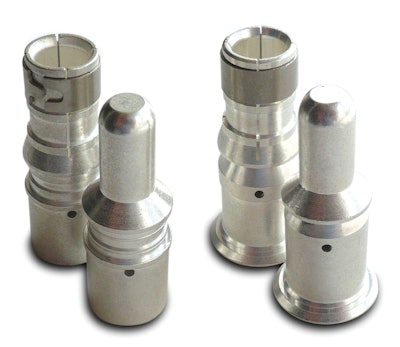

Cs1066apdprimage 10634111

ITT Interconnect Solutions has developed the APD Series transportation connectors specifically to overcome harsh environments commonly found in heavy transportation applications.

  • Features sealing to IP67/IP69K specifications (with individual wire sealing)
  • Offers wide range of interface options, including 1- and 2-way high power, 4-way high voltage, all the way up to 51-way versions
  • Provides flexible platform for customized solutions, as well as special sensor and PCB-type interconnects that are all vibration resistant
  • Manufactured from robust materials resistant to diesel fuel, oil and brake fluids commonly found in heavy vehicles and agricultural equipment
  • Features bayonet locking system to cope with high vibration
  • Electrical specifications meet requirements of up to 48V DC and 240A
  • APD 19- and 51-way connectors offer secondary locking feature for easy contact installation and guaranteed contact alignment
