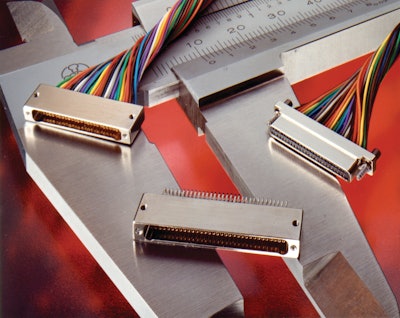

DUALOBE Nanominiature D-style Rectangular Connectors

The TE Connectivity DUALOBE connectors meet the requirements of MIL-DTL-83513 for micro-miniature connectors as well as M32139 for temperature, durability and electrical performance.

Teconnectivity Dualobeconnecto 11179467
Te Connectivity Logo 10933218

TE Connectivity's ruggedized and reliable nanominiature D-style rectangular DUALOBE connectors are designed to help withstand extreme temperatures in harsh environments within the military and commercial aerospace industries.

  • Lightweight, customizable and reliable
  • Available in both machined aluminum and molded plastic shells for one- and two-row connector housings
  • Multiple termination methods include wires, surface mount, thru-hole, panel mount and "duckbill"
  • Wired harness assemblies can also be customized
  • Meets robust requirements of MIL-DTL-83513 which has been developed for micro-miniature connectors
  • Exceeds military spec for nanominiature connectors, as well as M32139 requirements on temperature, durability and electrical performance
  • Features DWV of 500V at sea level and 150V at 70,000 ft.
  • Offers up to 500 mates and demates
  • Temperature range of -200 C to 200 C
  • Includes .025 in. pitch pin with standard position sizes 5, 9, 15, 25, 37, 51 and 65
  • Overall size and weight are substantially lower than microminiature connectors, helping to reduce board space and overall weight
