Series 696 Harsh Environment Connector

The Harsh Environment Connector from Binder-USA feature IP69/IP69K ratings to ensure durability in extreme environmental conditions.

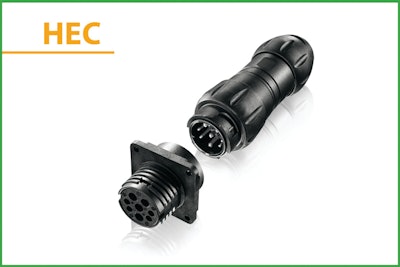

696 Hec 11474816

Binder-USA introduces the Harsh Environment Connector (HEC) as part of the Series 696 product line.

  • Durably designed to endure extreme environmental conditions
  • IP68/IP69K rating provides ability to withstand high pressure and high temperature wash downs?
  • Features resistance to UV, acidic rain, saline mist, ozone and other pollutants in the air
  • Well suited for the industrial and agricultural industries
  • Contact arrangement is a hybrid 4x signal and 3+PE power configuration with removable crimp contacts
  • At eight contacts, maximum rated voltage is 400V for power and 60V for signal
  • Rated current is 3A for signal contacts and 25A for power contacts
  • Standard wire gauge for signal contacts is 26 to 16 AWG, and for power contacts standard wire gauge is 16 to 14 AWG
  • Three-point bayonet locking provides safe and secure, fast locking while a robust key prevents any wrong connection
  • UL and VDE approved for easier implementation to new and existing applications
  • Male and female field-attachable plugs and panel mount receptacles are currently available
  • Protection caps are provided as an option to protect unmated connectors
