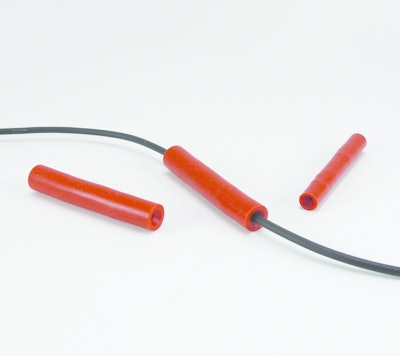

DEUTSCH Jiffy Splices, part of TE Industrial & Commercial Transportation’s portfolio of harsh environment electrical connectors, are a unique, field-serviceable alternative to permanent splices.
- Withstands harsh conditions of construction, mining, marine and agricultural industries
- Easy to install and can be used to quickly repair damaged electrical connections on equipment at the jobsite
- Protects connections from dirt, dust and water immersion up to 3 ft. (0.91 m)
- Made from high-quality silicone elastomer
- Body houses contact retention system that secures a mated pair of contacts in compact, environmentally-sealed unit
- Accepts one DEUTSCH pin and socket
- Available in two sizes
- Part number JS-12-00 accepts size 12 DEUTSCH contacts (25 amps) and utilizes 12-14 AWG
- For 14-20 AWG wire, part number JS-16-00 accepts size 16 DEUTSCH contacts (13 amps)
- Contacts can be easily removed by using standard DEUTSCH removal tools if servicing is ever required
- DEUTSCH removal tools are made of heavy-duty plastic and successfully remove contacts without damage to wire, insulation or body
