Amphenol Sine Systems BoardLock Series Connectors

Amphenol's BoardLock Series connectors can be combined with the A Series connectors to reduce mis-mating occurrences.

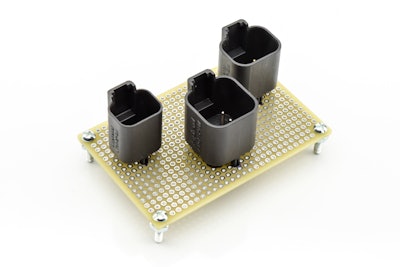

BoardLock Group 573b712bf2c8c
Amphenol Sine Tuchel I 40A Logo Color Horizontal 573b3ae03808d

The BoardLock Series from Amphenol Sine Systems combines flangeless wire-to-board versatility with the reliability of the A Series environmentally sealed thermoplastic connection system.

  • Well suited for power or data signal applications
  • Features compact, low-profile and lightweight design
  • Delivers proven durability in off-road and harsh environments
  • Snap-in board features allow for rapid placement
  • Enclosed latch-receiver design benefits potting and over-mold applications
  • Mis-mating occurrences are reduced when combined with the A Series positive polarization and available coding options
  • Mixed-power and signal arrangements, 90 degree or straight PCB pins, or custom flange mount designs are available to reduce overall connector size and save space
