TE Connectivity PCON 12 One-Position 90-Degree Unsealed Connector

The PCON 12 is a one-position 90-degree unsealed connector which can be used in a variety commercial vehicle applications.

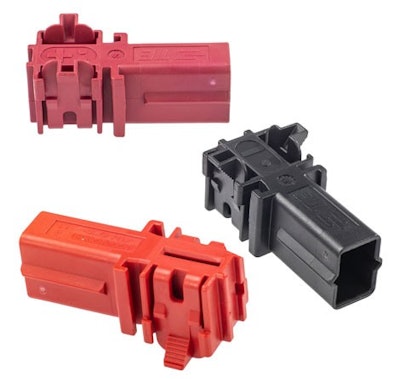

Pcon12 470 445
Te Logo

TE Connectivity (TE) introduces the PCON 12 one-position 90-degree unsealed connector which is part of its portfolio of unsealed connectors for inside cabin applications.

  • Made out of flame-retardant material
  • Well suited for supporting in-cabin power applications
  • Current carrying capability of up to 60 amps at 90 C (194 F)
  • 90-degree cable exit configuration enables use in extremely tight spaces inside vehicle cabs
  • Features positive and negative markings on each connector
  • Can accept wire sizes up to 16 sq. mm (0.025 sq. in.) to allow establishing high power connections
  • Three polarization key mating configurations prevent polarity mismatches
  • Dual side-actuated snap-in locking features provide audible “click” for added layer of security
  • Suited for use within trucks, buses, and agricultural and construction equipment
