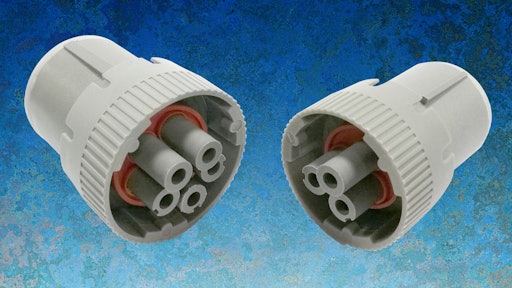

Amphenol AT Circular Connector Series

The ATC series is available in a 9 pole version which supports CAN systems and electrical system communications.

Apl A 5300 Atc
Amphenol Industrial

Amphenol Industrial Operations now offers industry-standard, on-vehicle data plug connectors that are designed for vehicle diagnostic and data communication, the AT circular connector (ATC) series.

  • Designed to perform in the most demanding applications in heavy-duty trucks and buses
  • 3 and 5 pole standard electrical plugs are designed to improve the quantity and quality of options offered, while 9 pole version provides J1939 solution of receptacle/contacts/accessories
  • Offers reliable support on CAN systems and helps electrical devices to communicate with each other
  • Applications include GPS tracking and CAN data communications for diagnostics of vehicle engine speed, temperature, oil temperature and exhaust emissions
  • Features simple jam nut mounting for quick assembly and a smaller flange that saves space on mating panels
  • Sealed against moisture and contaminants
  • Features reverse bayonet coupling design that allows for quick mating and unmating
  • Withstands more than 100 mating cycles
  • RoHs compliant
  • Works with industry standard size 16 contacts
  • Made from high-quality copper alloy; nickel and gold plating are available
  • Operating temperature range of -55-125 C (-67-257 F)
