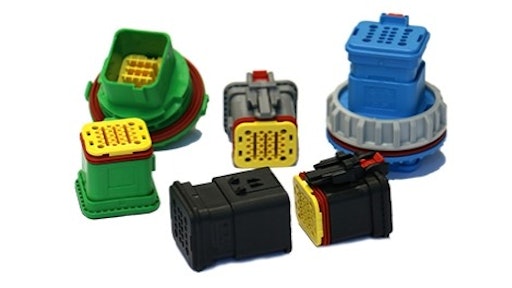

TE Connectivity NTSEAL 20 Position Connector

TE Connectivity's NTSEAL 20 Position Connector is a 20-position, high-density wire-to-wire device.

Hero Product Master
TE Connectivity
Te Logo

To address the need for flexible and robust wire-to-wire connectivity in a compact format, TE Connectivity (TE) has designed the NTSEAL 20 Position Connector.

  • A 20-position, high-density wire-to-wire connector
  • Utilizes TE/DEUTSCH Size 16 and 20 Common Contact System for inline applications
  • Rugged, sealed design is IP67, IP68, and IP6K9K rated
  • For use in agricultural and construction equipment, buses, trucks and other applications and industries where environmental protection is required
  • Hybrid contact agreement provides design flexibility for power and signal applications
  • Can be used in environments exposed to extreme temperatures and engine-level vibrations
  • Integrated Terminal Position Assurance (TPA) and Connector Position Assurance (CPA), tool-free mount design eliminates need for additional parts or tools providing quick, easy installation and repair
  • Back shells and mounting clips are available to provide engineers options for designing robust solutions
