Leaf Light v2 CAN Interface

Kvaser's Leaf Light v2 CAN interface is now available in application-specific versions, including vehicle diagnostics.

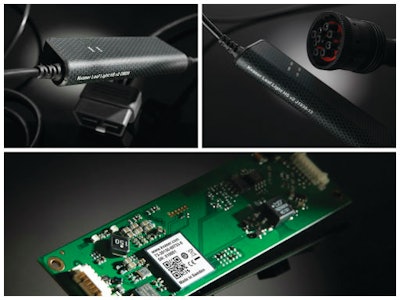

Kvaserllv2 Collage Lowres 11578062

Leading Controller Area Network (CAN) interface specialist, Kvaser AB, announces application-specific versions of its Leaf Light v2 interface.

  • Bare board version for embedded applications available, as well as tailored versions for vehicle diagnostic applications
  • Connects any CAN network to a PC or mobile computer in wide range of applications such as automotive, mining, marine, military, oil and gas exploration, military, industrial and heavy machinery
  • Supports high speed USB and can send up to 8,000 messages per second, each time-stamped with 100 microsecond accuracy
  • Galvanic isolation now comes as standard, enhancing protection from power surges or electrical shocks
  • CANlib library provides application programmers with quick and easy access to CAN network, enabling hardware initialization, bus on/off, setting of bus parameters and buffers, as well as read/write commands
  • Leaf Light v2 OBDII, J1939-13 and CB versions are available now with free software, free software updates and free support
  • Leaf Light v2 OBDII provides simple way of connecting PC with on-board computer in any vehicle by means of its USB 2.0 connector and a 16-pin OBDII compliant CAN connector
  • Leaf Light HS v2 J1939-13’s USB 2.0 connector and 9-pin J1939-13 compliant CAN connector suits commercial vehicle diagnostic applications
  • Leaf Light v2 CB, a bare circuit board version of the Leaf Light v2 interface, is well suited for embedded applications
