TE Connectivity Two Position Mini Fuse Holder

TE Connectivity's two position mini fuse holder is environmentally sealed and includes an IP67 rating for use in harsh environmental conditions, and will be on display at bauma 2016.

March 10, 2016
TE Connectivity - Industrial & Commercial Transportation business unit

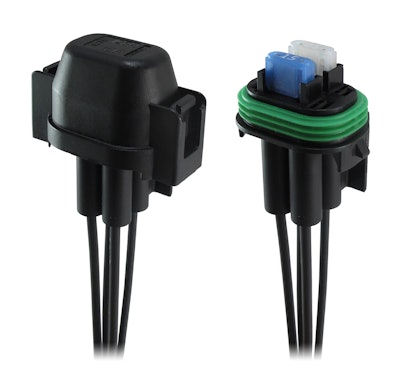

TE Fuse Holder and Cover 56e093906f348
Te Logo

TE Connectivity Industrial & Commercial Transportation’s compact two position mini fuse holder (TE part number 2066046-1) stands up to the extreme conditions of the agricultural, construction, trucking, and other off-highway industries.

  • Environmentally sealed
  • Features IP67 rating and protects connections from dirt, dust and water immersion up to 1 m
  • Can be designed into an electrical system to provide protection to a vehicle’s wiring and electrical equipment
  • Integrated mounting feature allows mounting anywhere
  • Accommodates any standard ATM mini fuse
  • Identification caps are currently available for two arrangements, 25A & 15A (TE part number 2066502-1) and 25A & 10A (TE part number 2066502-2) with additional caps to be available based upon demand
  • Accommodates two active fuses and two spares
  • Utilizes TE’s robust and dependable AMP MCP 2.8 contacts which feature multiple points of contact on each ATM mini fuse blade terminal
  • AMP MCP 2.8 contacts provide stable electrical connections and solid fuse retention performance
  • Three-gland wire seals provide redundant, environmental sealing between wires and plastic housing
