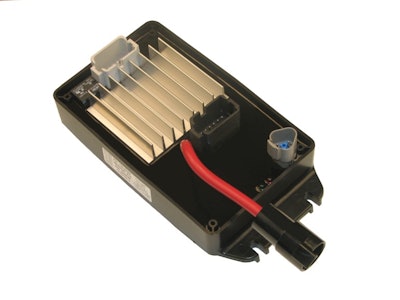

Trombetta 100A J1939 Output Module

Trombetta's 100A J1939 Output Module features eight outputs rated at 25.5A and two outputs at 10.0A for a total device current of 100A.

May 2, 2016

Trombetta Corporation

TR 16205 572755e70dfb0

The Trombetta 100A J1939 Output Module is a 10 channel PWM output module designed to be a cost effective solution for extreme-duty applications.

Each PWM output has independent control of frequency and duty cycle
Well suited for wide range of applications
Eight outputs are rated to 25.5A, two outputs are rated to 10.0A, with a total device current of 100A
Operating voltage range is 8-32V DC
Includes reverse battery and voltage transient protection
Features short circuit and overload protection
Potted protection, sealed Deutsch connectors and IP67 rating enable use in harsh conditions
Operating temperature range is -40-85 C (-40-185 F)

Fill out the form below to request more information about Trombetta 100A J1939 Output Module
