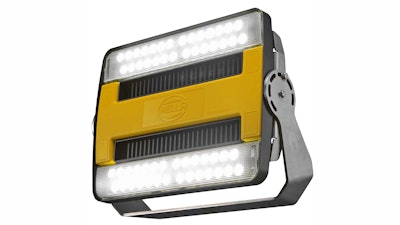

HELLA HypaLUME LED Flood Light

The HELLA HypaLUME LED Flood Light features 56 LEDs which produce light output of 20,000 lumens for optimal visibility in mining applications.

Hellainc 10055527

HELLA Inc. has introduced the first LED floodlight designed specifically for the mining industry, the HELLA HypaLUME LED Flood Light.

  • Withstands long periods of use in rigorous applications across an extreme temperature range from -40 to 50 C  (-40 to 122 F) with no decrease in light output
  • Incorporates 56 high-powered LEDs to produce an output of more than 20,000 Lumens
  • LEDs have a color temperature of 5,700 K, providing a near-daylight environment and ensuring high color rendering
  • Coupled with three specialized optical distributions to effectively meet all lighting application requirements
  • LED driver electronics ensure that the light output remains stable over a wide range of voltage variations (18 to 52V)
  • Consumes 240 W at 24V DC
  • Provides luminous efficacy close to 100 Lumens per watt and usable light level equivalent to a 400 W Metal Halide
  • Available in three models: flood, close range and long-range illumination
  • Protected from reverse polarity and short circuit faults
  • Sealed and tested to IP6K9K
  • Features UV stable, high impact and chemical resistant Grilamid lens which protects LEDs from environmental damage
  • Specially designed driver board, molded fins for heat dissipation and LED alignment ensure advanced thermal management, drawing heat away from LEDs to maintain extended life guarantee
  • Pre-wired with 1.8 m (6 ft.) of high quality double insulated marine grade cable
  • LEDs are fully sealed and require no servicing
  • Variety of bracket options available along with a wide range of aiming options, including a 50G mobile equipment bracket, a 15G fixed lighting bracket, and pole and cable suspension mounts
