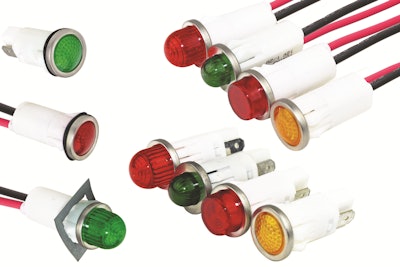

VCC 1092 Series High Brightness LED Panel Mount Indicators

VCC's 1092 Series LED panel mount indicators feature front panel snap-in mounting for easy installation and achieves full brightness in microseconds.

VCC 1092SeriesLEDPanelIndicators 56f3fd9a7c7c4
Vcc New Logo Rg Blink (002)

VCC has developed the 1092 Series high brightness LED panel mount indicators.

  • Achieves full brightness in microseconds, even in daylight viewing
  • Front panel snap-in mounting eases installation, reducing assembly time and cost
  • Snaps fit into 0.500 in. (12.7 mm) panel hole and requires no additional hardware
  • Well suited for new and retrofit designs
  • Provides low energy consumption, fast on/off and low heat generation, enabling long operating life of more than 100,000 hours
  • Shock and impact vibration resistant when used with a speed nut accessory, improving overall reliability of equipment
  • Water, dust and oil resistant when used with O-ring gasket accessory that also helps maximize life expectancy of equipment
  • Available in four different lens styles, including hi hat, hi dome, semi dome and small dome
  • Customizable and meets wide range of application requirements
  • Offered in red, green and amber colors
  • Operating voltage of 12 and 48V DC
  • Designed with wire leads (4.4 in./4.8 in.) or tab terminal (0.187 x .020)
  • Features a bezel finish and polished stainless steel
  • Compliant with RoHS and REACH requirements
  • cULus listed
