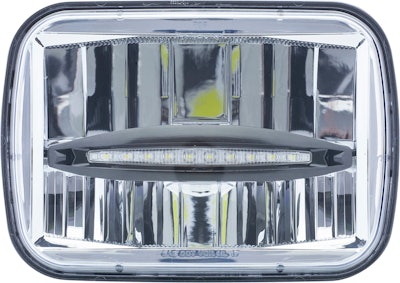

Optronics International has broadened its Opti-Brite LED Headlamp family with the introduction of its HLL70HLB 5 x 7 in. combination high- and low-beam headlamp.
- Retroflective LED light beam technology enables projection of optimized beam pattern conducive to superior driver comfort and performance
- Features LED conspicuity arrays located in center of lens
- Rear-oriented LEDs face backward toward metallic parabolic reflectors that are precision-engineered to create superior high- and low-beam photometric characteristics
- Multi-volt compatible
- Meets or exceeds all FMVSS 108, CMVSS 108 and ECE/R10 photometric requirements for visibility and safety
- Behind conspicuity array, advanced reflector geometry emits tightly controlled blue-white light beam that approximates color temperature of sun’s natural light
- Light quality makes it easier for human eye to see the road, enhancing safety while reducing eye fatigue
- Improves foreground lighting from bumper to 25 ft. (7.62 m) out
- Accommodates 9-33V electrical systems
- IP67 and SAE J575e rated for ingress protection
- Comes complete with enhanced electromagnetic interference (EMI), electrostatic discharge (ESD) and power surge protection features
- Features highly durable powder-coated, die-cast aluminum housings with tough polycarbonate lenses
- Includes special coating that protects against the elements and cracking, fading and yellowing from exposure to UV radiation
- Fits 5 x 7 in. (12.7 x 17.8 cm) rectangular formats and has both high- and low-beam functions built in
- Comes in hardwired versions with three-wire design with 6.5-in. leads and with standard H4 three-blade connectors for plug-and-play speed and simplicity when retrofitting any vehicle
- Employs solid-state, surface-mount device (SMD) design that protects electronics against moisture, shock and vibration
