VCC 12-24V DC VentoFlex Modular Lighting System

The 12–24V DC version of VCC's VentoFlex lighting expands lighting design possibilities.

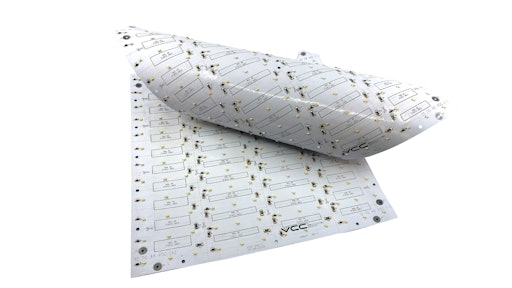

Vento Flex 12 24 Vdc Press Release Image
Vcc New Logo Rg Blink (002)

Visual Communications Company (VCC) launches additional voltage option for its VentoFlex Modular Lighting System. A 12–24V DC version is now available to help open up even more lighting design capabilities.

  • Combines ease of use with customization that eliminates design constraints associated with tile size
  • Features tiny footprint of 0.15 in. (3.81 mm)
  • Each tile provides seamless illumination with setback distances as low as 2 in. (51 mm)
  • 12 x 12 (304.8 x 304.8 mm) flexible copper clad tiles (FCCL) were made for hard corners and can bend well past 90 degrees
  • Connect five to 15 tiles with one LED driver, depending on the voltage needed
  • Tiles don’t have to physically touch to work together
  • Six color temperatures ranging from 2200–5700K
  • Can be mounted directly to any non-conductive interior surface without heat sink accommodations
  • No tools are required to connect the tiles, and tape, staples, or tacks can be used to mount on any non-conductive interior surface.
  • Provides 140-degree viewing angle
  • Dimmable to 1%, adding more convenience
