HWB18 Sealed Power Distribution Module

Cole Hersee announces the release of its HBW18 sealed power distribution module, compactly designed for use in space-constrained vehicles.

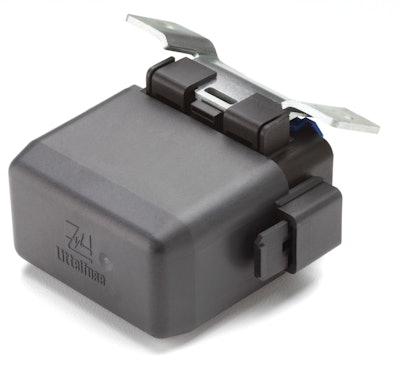

Hwb18a 10634129

Cole Hersee, the Commercial Vehicle Products division of Littelfuse, Inc., introduces the HWB18 sealed power distribution module (PDM), a compact PDM for use in space-constrained vehicle battery compartments.

  • Features 18 slots
  • Accepts plug-in circuit protection components with 280 style footprint, including Delphi MetriPack 280 terminals, cable seals, and cavity plugs
  • Stands up to road splash and salt spray, providing robust protection to devices
  • Ability to accept mini-fuses, relays, circuit breakers and diodes enables handling of added equipment frequently found in today’s heavy duty vehicles
  • Measures 60 x 38 x 74 mm (2.4 x 1.5 x 2.9 in.)
  • Well suited for use with accessory circuits, overflow circuits from main PDM, or as main module on smaller vehicles
  • Includes IP67 sealing
  • Can be installed virtually anywhere on vehicle
  • Elimination of internal bussing allows user to customize circuitry with direct wire-to-component connections
  • Terminal position assurance (TPA) locks provide secondary locking protection for wire leads, preventing them from being pulled out
  • Available with or without a steel mounting bracket
  • Snaps into bracket, and is held at a 30 degree angle to allow easy viewing and servicing
