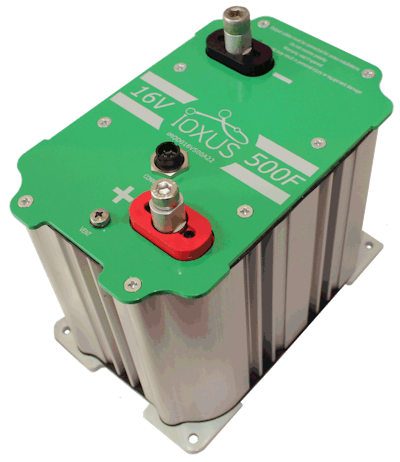

iMOD 500F Module

The iMOD 500F module from Ioxus features IP65 sealing to ensure survival in harsh operating conditions.

iMOD 16V 500F 54c6af6000023

The Ioxus iMOD 500F is built using the company's 3000F iCAP cells, the highest power density cells on the market.

  • Rated to IP65, including internal, proprietary cell balancing and voltage indicators
  • Can be used as a stand-alone product or configured in series parallel strings up to 750V with no additional balancing required
  • Designed specifically for micro hybrid start/stop, automotive and industrial applications
  • Features 16V working voltage
  • Includes individually balanced cells
  • Operating temperature range is -40 to 65 C
  • Optional state of charge indicator available
  • RoHS compliant
  • Applications include use in renewable energy systems, starting systems, backup power and hybrid drive systems
