Axiomatic AX021100 CANbus Single Valve Controller

The AX021100 CANbus Single Valve Controller accepts SAE J1939 or CANopen messages to command a solenoid up to 2.5A.

December 5, 2018

Axiomatic Technologies Corporation

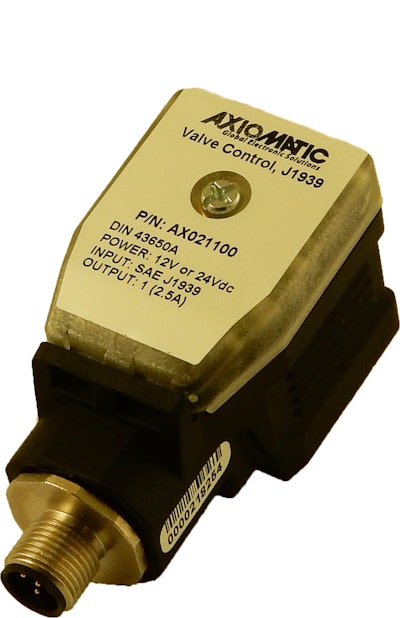

Ax021100 300dpi

Axiomatic has released the AX021100 CANbus (SAE J1939 or CANopen) connected Single Valve Controller with DIN 43650A mounting style.

Accepts SAE J1939 or CANopen messages to command a solenoid up to 2.5A
Powered by 12V or 24V machine batteries
DIN 43650A mounting style locates electronics directly on valve for distributed control
Includes analog command inputs and economy versions with fixed parameters
Electronic controls are designed for machine applications with vibration compliance to IP67 rating
Operation from -40-85 C (-40-185 F)
LED indicator provides status of operation
M12 connector simplifies wiring
Other form factors available include remote mount model, plug-in for valve molded TE Deutsch DT20 connectors and DIN rail mount model for control panels
