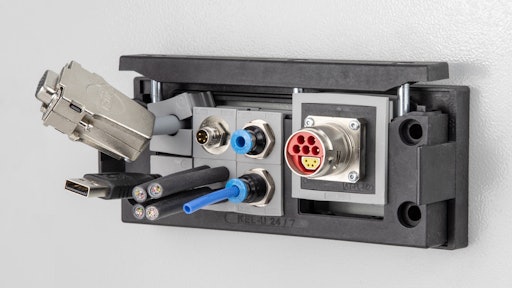

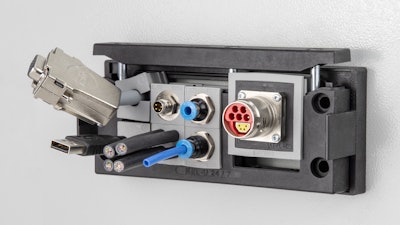

icotek AT-FL and QT-AT-FL Adapter Grommets for IMAS-CONNECT

icotek introduces the AT-FL and QT-AT-FL adapter grommets which are designed to be used with its modular adapter system IMAS-CONNECT.

• Serves as an interface for M23 square flange connectors
• Can be inserted into split cable entry frames
• Allows built-in plugs or built-in sockets to be integrated directly into cable entry
• All square flanges with a hole spacing of 19.8 x 19.8 mm (0.78 x 0.78 in.) are suitable
• Assembly costs are reduced since there is no longer a need for separate cut-out in housing wall
• Made from elastomer; body is made from polyamide and free of silicone and halogen
• Includes certifications for ECOLAB, HL3, UL94-VO, and RoHS

AT-FL adapter grommet

• Design is based on KT large cable grommet
• Can be used in icotek KEL systems (KEL-U, KEL-ER, KEL 183 and KEL-FG)
• Achieves protection classes up to IP65

QT-AT-FL adapter grommet

• Designed based  on the QT large cable grommet
• Suitable for icotek KEL-QUICK systems
• Achieves IP54 protection class (depending on the screwed-on flange and the connector)
