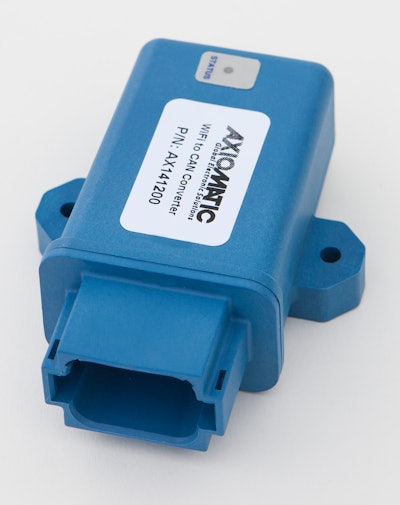

Axiomatic AX141200 CAN to WiFi Converter

The AX141200 CAN to WiFi Converter is used in wireless CANbus monitoring in off-highway machines and control systems.

June 21, 2021

Axiomatic Technologies Corporation

O2 U2509 Ax141200

Axiomatic

Axiomatic Technologies Corporation introduces the AX141200, a rugged, and adaptable CAN to WiFi Converter for secure and reliable wireless connectivity to a vehicle CANbus.

Used in wireless CANbus monitoring in off-highway and industrial machines, and control systems
Offers remote bi-directional CANbus accessibility over a wireless link
Acts as a wireless bridge
Features one CAN port for a high data transfer rate with a configurable baud rate
Rugged design with IP67 protection rating
Integrated TE Deutsch 8-pin connector
Powered from a 12 or 24V DC battery
Features a status LED indicator
Converts CAN frames into UDP or TCP IP datagrams, and vice versa, over wireless network using a Wi-Fi protocol
Wi-Fi connection provided by an internal antenna
Wi-Fi port can work in a station or access point mode in 2.4GHz or 5GHz frequency range

Fill out the form below to request more information about Axiomatic AX141200 CAN to WiFi Converter
