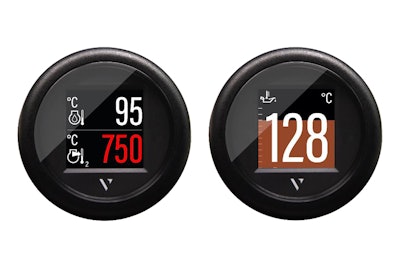

Veratron VL Flex 52 J1939 Round Gauge

The VL Flex 52 J1939 is an all-in-one, 1.44 in. round gauge that can display two sets of diesel engine data simultaneously.


Veratron introduces the VL Flex 52 J1939 all-in-one round gauge designed to run off 12/24V and featuring over-voltage and reverse polarity protection.

  • Supports a broad range of sensors
  • Measures 1.44 in. (3.7 cm)
  • Can display two sets of diesel engine data simultaneously
  • Easily configured using a mobile device and the companion Veratron app
  • Supports input from analog sensors as well as J1939, LIN 2.0 and other digital networks
  • Graphic design can be set up in a single or dual layout, pulling from up to 30 sets of data and can display a large numerical value and colored bar graph that are viewable in any light condition due to its sun-readable and anti-glare PMMA lens
  • Waterproof to IP67 standards
  • Features flame-retardant polycarbonate 2 in. (5.1 cm) housing
  • Installation choices include flush mount or standard spinlock
  • Comes with a black triangular front ring bezel with additional colors available
  • Includes a wiring harness which connects via an 8-pin Tyco/Hirschmann MQS plug
  • Draws only 50mA with backlight intensity set to maximum
  • Complies with CE, UKCA, Reach, RoHS and UL requirements
  • Configuring is as simple as tapping
  • Selections are chosen in the Veratron app when the mobile device is held close to the gauge
  • Embedded passive NFC receiver and antenna provide setup without the need for a power supply
  • Highly adaptable
  • Displays 30 types of data including brake pressure, AdBlue, engine, battery, tank and performance values
  • Can be configured to set alarms
  • When a preset threshold is met and the alarm triggered, the bar graph or numeric value will turn bright, eye-catching red
