First Sensor Series 9 Silicon Avalanche Photodiodes (APDs)

With the Series 9, First Sensor offers a wide range of silicon avalanche photodiodes (APDs) with very high sensitivity in the near infrared (NIR) wavelength range, especially at 905 nm.

• Internal gain mechanism, large dynamic range and fast rise time suits use in LIDAR systems for optical distance measurement and object recognition according to the time of flight method
• Application examples include driver assistance systems, drones, safety laser scanners, 3D-mapping and robotics

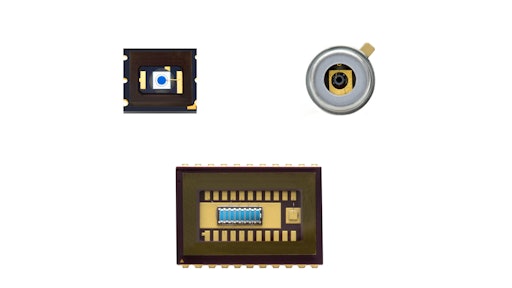

• Offers detectors as single elements as well as linear and matrix arrays with multiple sensing elements
• Package options include rugged TO housings or flat ceramic SMD packages
• Slow increase of the gain with applied reverse bias voltage allows for easy and precise adjustments of high gain factors
• For particularly low light levels, hybrid solutions are also available that further enhance signal with internal transimpedance amplifier (TIA)
• Integrated amplifier is optimally matched to photodiode and allows compact setups as well as very large signal-to-noise ratios
• Can be adapted to specific customer requirements, e.g. in terms of sensitivity, gain, rise time or design
• Large dynamic range and fast rise time
• Single element photodiodes as well as linear and matrix arrays
