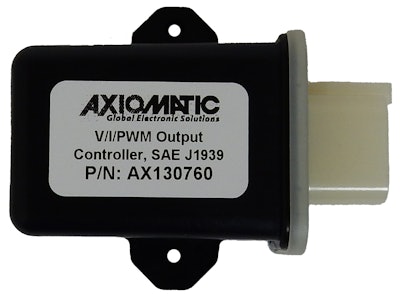

The AX130760 CAN to Single Output Controller has a powerful microcontroller and versatile control algorithms. Its independent function blocks allow the user to configure it for a wide range of applications without the need for custom firmware. All parameters and function blocks are user configurable through the Axiomatic Electronic Assistant.
It features one user configurable Current, Voltage and PWM output type. Communication is over an SAE J1939 compliant CAN bus. It can operate at standard 250 kbit/s and 500 kbit/s and non-standard 667 kbit/s and 1 Mbit/s baud rates. The required baud-rate is detected automatically upon connection to the J1939 network.
This new controller can operate with battery power supply of 9 V to 36 V and is protected against reverse polarity, surge and transient, undervoltage, and overvoltage. It works in temperatures from -40 degrees Fahrenheit to 185 degrees Fahrenheit). Its compact enclosure is rated IP67 against dust and water ingress.
Because of its rugged enclosure and robust control algorithms, AX130760 may be used in distributed control applications in commercial vehicles, off-highway equipment., industrial equipment, oil and gas equipment, and agricultural equipment.
