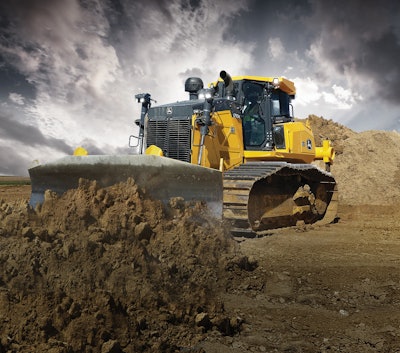

John Deere Adds SmartGrade Capabilities to 950K Power-Angle-Tilt Dozer

North America’s largest Power-Angle-Tilt (PAT) crawler dozer now boasts the benefits of John Deere SmartGrade. Adding SmartGrade technology to the Dubuque, IA, manufactured 950K PAT improves the quality of work and job site accuracy through the complete integration of the Topcon 3D-MC² Grade-Control System. The system is fully incorporated into the machine cabin, structures and software — delivering precise grading performance while eliminating vulnerable external masts and cables.

“The 950K PAT dozer and our entire SmartGrade lineup have been very successful since their respective launches,” says Nathan Horstman, Crawler Dozers Product Marketing Manager, John Deere Construction & Forestry. “It only made sense to put these two innovations together and provide customers with a game-changer in terms of dozer productivity and efficiency on the job site.”

Integrating SmartGrade into the machine eliminates external cables to the masts, which reduces breakage, and the removal of the masts from the blades helps decrease vulnerability to theft and damage. SmartGrade technology removes the need to install blade-mounted sensors and components daily, reducing setup time, and allows operators to get more work done.

A key feature of the integrated machine control is Auto SmartGrade. This allows the operator to easily adjust the system when moving the machine from one soil type to another, unlike an aftermarket system, which often requires the GPS manager to make a trip to the machine to recalibrate the system. Particularly helpful to new operators, Auto SmartGrade automatically lifts the blade over heavy loads before track slippage occurs, then returns the blade to grade. SmartGrade also limits the number of passes required, reducing the pace of wear on the undercarriage. The John Deere SmartGrade dozer is nearly 7% more accurate across the entire speed range of the dozer when compared to conventional masted systems.

Another benefit of the SmartGrade technology is that machine dimensions are preloaded into the grade control monitor, reducing the time required to calibrate the dozer to about 30 minutes. The easy-to-use system is beneficial to new operators in that it can get them up and running quickly.

The 950K PAT SmartGrade dozer incorporates an EPA Tier 4 Final/EU Stage IV John Deere 9.0-L (549-cu. in.) engine with 280 hp (209 kW). Contractors will quickly realize that the efficiently designed hydrostatic powertrain will get approximately 15% more power to the ground versus a conventional torque-converter powertrain. The John Deere dual-path hydrostatic transmission allows an operator to push a full load through turns without losing material, unlike conventional torque-converter transmissions on competitor machines.

The 8.6-cu. yd. (6.6 m³) six-way PAT blade gives the operators the flexibility to place material where they want it on every pass using the blade angle feature. The PAT enhances job site productivity and versatility by executing several tasks that might otherwise require multiple machines.

Fleet managers looking to get the most out of their 950K PAT SmartGrade dozer can rely on their John Deere dealers to provide Ultimate Uptime, featuring John Deere WorkSight. With Ultimate Uptime, owners receive predelivery and follow-up inspections that include five years of JDLink telematics, machine health prognostics, remote diagnostics, programming capabilities and the ability to add dealer-provided uptime solutions to a customized package.
