RD-19240 Resolver-to-Digital Converter

Data Device Corp. offers the -55 C to 125 C temperature grade RD-19240 resolver converter for new and advanced applications.

Rd19240fs 10168274
Ddclogo S 10168276

Data Device Corporation (DDC), a global designer and manufacturer of high-reliability data interface components, motion control, and solid-state power controllers for aerospace, defense, and industrial automation applications, offers the -55 C to 125 C temperature grade RD-19240 resolver converter for new and advanced applications.

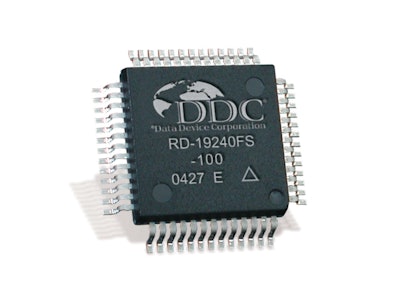

The RD-19240FS-100 resolver-to-digital converter is highly repeatable to 1 LSB in 14 bit mode and contains programmable features such as resolution, bandwidth, and tracking rate, which allow for dynamic configurability.

  • Small 10 x 10 mm MQFP package size
  • Internal synthesized reference
  • Programmable for LVDT/RVDT input
  • +5 volt only option
  • Built-in-test output monitors for loss of signal, reference frequency, or tracking
