AX022400 Dual Valve Controller

Aximatic's AX022400 Dual Valve Controller is designed to extend machine control networks.

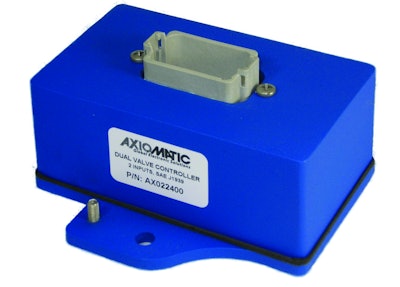

Ax022400300dpi 10287182
Axiomatic Logo 2019

Axiomatic’s family of rugged valve drivers and I/O modules welcomes the Dual Valve Controller for extending machine control networks. The controller is designed to meet the rugged demands of mobile equipment, marine and heavy-duty industrial machine applications.

  • Interfaces with two fully independent universal command inputs selectable as voltage, current, resistive, frequency, RPM, PWM or digital types
  • Provides two independent software controlled outputs up to 3A
  • Selectable as proportional current, hotshot digital, PWM duty cycle, proportional voltage, or On/Off digital types
  • Power supply input is 12V, 24V or 48V DC nominal and has one provided voltage reference
  • CAN User interface is compliant to SAE CAN J1939 Standard
  • Custom program functionality with Axiomatic Electronic Assistant software for J1939 models or via .EDS file with standard service tools for CANopen Object Dictionary
  • Mounts directly on valve block or remotely
  • Encapsulated in rugged aluminium housing for use in moist, high shock, vibrating and non-hazardous environments
  • Features IP67 rating
  • Applications include, but are not limited to, Proportional Fan Drive Control, PID Closed Loop Valve Control, Hydraulic Valve Control and Signal Conversion
