Sx-STG Eight-Channel, Multi-Input Analog Measurement Module

IPETRONIK, Inc. introduces its eight-channel, multi-input analog measurement module with integral on-board sensor excitation.

Ipetronik 10290777

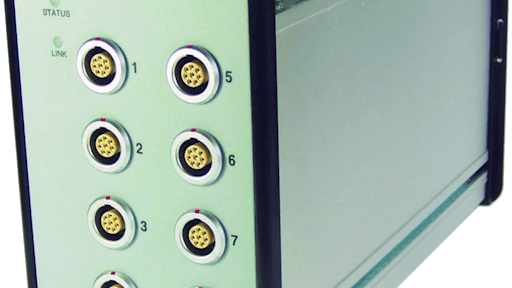

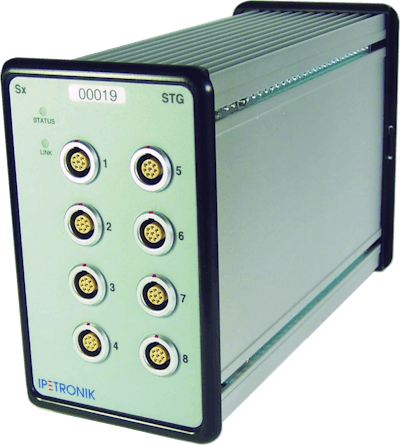

IPETRONIK, Inc., a designer, developer and manufacturer of mobile measurement technologies for the global automotive market, has announced the introduction of the Sx-STG, the newest member of the IPETRONIK Sx product family. The Sx-STG is a compact, eight-channel, high-speed, multi-input analog measurement module with on-board sensor excitation.

  • For use within demanding mobile unipolar and bipolar voltages from ± measurement applications with stringent reliability and high sample rate requirements
  • Applications include vibration and acceleration assessments, road load data acquisition, and vehicle component and body testing
  • Offers user-selectable sensor signal output types, including IEPE (also known as ISOTRON or ICP); charge or voltage output; and strain gauge
  • Supports 1/4, 1/2 and full-bridge circuit designs
  • Features option to include TEDS sensor recognition (per IEEE 1451.4)
  • Each analog input is galvanically isolated and able to measure twelve 0.01 to ±50V, with 16-bit resolution
  • Able to withstand maximum voltages up to ±100V
  • Each input offers own adjustable, dual sensor excitation, which is can be set to a maximum of ±15V with up to ±45 mA
  • Onboard hardware features an integral, eighth-order, 4,800 Hz Butterworth low-pass filter which can be turned on or off as needed
  • Operates from a 9 to 36V DC supply voltage
  • Automatically powers off if voltage drops to below 6V
  • Power consumption is typically 7.5W, rising to a maximum of 20W under full load (with sensor excitation)
  • Operates either as standalone measurement modules or as part of a system incorporating other products from the IPETRONIK Sx and Mx series
  • Includes channel sample rates of 1, 2, 5, 10, 20, 50, 100, 200 and 500 Hz, as well as 1, 2, 5, 10, 20 and 40 kHz,
  • Abile to select from among four different rates per module
  • Outputs data via Fast Ethernet at a maximum speed of 100 MBit/s in accordance with IEEE 802.3 via XCPonEthernet (UDP/IP)
  • Dual bus concept (CAN and Ethernet in a single cable) allows output data directly to the CANbus upon completion of system integration, at a sample rate of up to 2 kHz
  • Dual bus systems are decoupled to a standard notebook PC (sold separately) using a special xBus2PC adapter cable
  • Offers offset and target value adjustment, shunt checks for sensor evaluation, supplementary bridge resistors that can be selected via software at 120, 350 and 1000Ω
  • Includes sensor excitation current surge detection capabilities
  • Wire breakage detection function for measurement inputs can be activated via software
  • Housing is an anodized aluminum enclosure, measuring 75 x 119 x 185 mm (2.95 x 4.68 x 7.28 in.) and weighing just 1430 g (3.15 lbs)
  • Environmental sealing protection of IP54
  • Operates over a temperature range of –40 C to 85 C (-40 to 185 F) at 5% to 95% relative humidity
