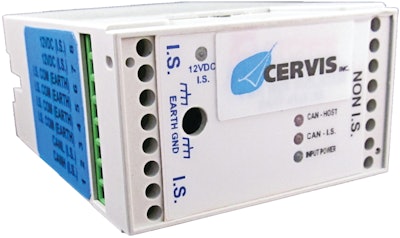

CBI-100 Intrinsically Safe Power Supply and CANbus Isolator

Cervis introduces its CBI-100 Intrinsically Safe power supply and CANbus isolator which has received MSHA and IEC 60079-11 approval for use in coal and methane environments.

Cervis Canbusiso23inch 10764167

Cervis Inc. announced the release of its CBI-100, an Intrinsically Safe (I.S.) power supply and CANBus isolator.

  • Carries MSHA and IEC 60079-11 Intrinsically Safe (I.S.) evaluations allowing use in applications specific to machines operating in coal and methane environments
  • Power supply portion can be connected to 12V DC from the non-I.S. or XP environment and produces a 12V DC, 0.9A I.S. power source
  • Provides isolation of bi-directional CANbus between the I.S. and non-I.S. environments
  • Features small footprint, measuring 1.75 x 3 x 4.25 in.
  • On-board LED diagnostics offers system condition notification
  • DIN rail mountable
  • Terminations are made via 16 screw terminals
  • Currently specified for use with Cervis GWM module, but can also be a “gateway” between non-I.S. CAN systems and/or other I.S. devices pending independent system approval
