ESX-MBC CAN J1939 Module

STW introduces its ESX-MBC CAN J1939 module for the control of electric motors and actuators up to 200 watts.

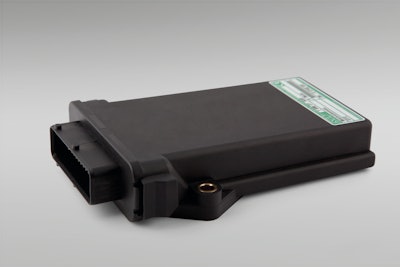

Stw Esx Mbc Cmyk 11271853

Sensor-Technik Wiedemann (STW) introduces the ESX-MBC, a CAN J1939 module for control of electric motors and other actuators in the power range up to approximately 200 W.

  • Features high power capacity and a flexible range of inputs
  • Offers solution for decentralized control of electric actuators in mobile machinery, particularly in the agricultural, construction and materials handling industries
  • Includes four fast-reacting PWM half bridges (each 10A) with current measurement and two further digital outputs, each capable of delivering a continuous 4A
  • Separate safety relays each supply one digital output and two half bridges
  • Four multi-function inputs are provided, and all analog signals have a 12 bit resolution
  • Suitable for voltage ranges 9 to 32V
  • Delivers maximum current of 30A
  • Robust plastic housing features ingress protection rating IP67
  • Housing measures 174 mm x 117 mm x 36 mm
  • Includes 42-pol connector from Tyco
