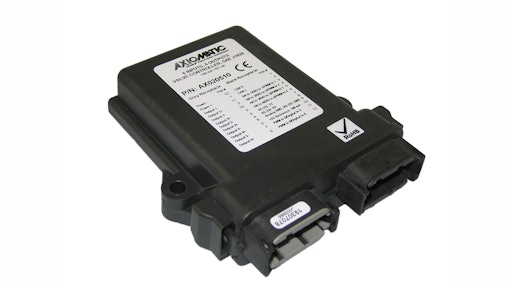

6:5 Valve Controller

The Axiomatic 6 Inputs/5 Outputs Valve Controller enables multi-functional hydraulic valve control.

Axiomatic Logo 2019

The 6 Inputs/5 Outputs Valve Controller adds multi-functional hydraulic valve control to Axiomatic’s line of machine controls.

  • Simulink software development allows OEM designers to program the device for specific applications
  • Provides precise, repeatable control of five proportional or on/off solenoids over a SAE J1939 network
  • PWM signal inputs or analog voltage or current inputs are accepted for interface to a PLC, Engine Control Module or command
  • potentiometers
  • Multiple switched inputs are provided to suit a range of applications, and each can be configured to measure the input value, and send the data to a SAE J1939 CAN network
  • Any output on the controller could be configured to use any of the on-board inputs as either a control signal or an enable signal, instead of taking the control information from the CANbus
  • Diagnostics messages are provided over the CAN network for the status of inputs or outputs
  • Settings are user configurable via a Windows-based Electronic Assistant tool
  • Rugged power supply interface accepts 12 or 24V DC nominal for battery powered machine applications
  • Features IP67 rating and is suitable for use in outdoor and high vibration environments
  • Includes CE mark
  • Operates from -40 to 85 C (-40 to 185 F)
  • Suits wide variety of machine control applications such as excavator hydraulic attachment control and data acquisition for monitoring the level in natural gas tanks
