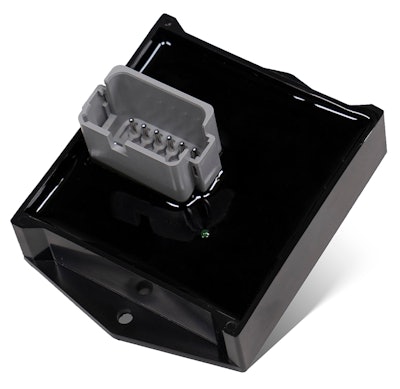

Marlin Technologies M-Flex CAN 4I-4O Controller

The M-Flex CAN 4I-4O Controller feature outputs with closed-loop current sensing for accurate control of proportional valves.

M Flex Can 4 I 4 O Controller
Marlin Logo Color (1)

The M-Flex CAN 4I-4O Controller from Marlin Technologies is designed for use in severe-duty, outdoor mobile applications.

  • For 12 and 24V applications
  • Configurable inputs and outputs for customizing controller to application
  • Outputs have closed-loop current sensing for accurate control of proportional valves
  • 250/500-Kbps auto baud detect
  • Fully encapsulated electronics for complete environmental protection
  • Deutsch DT style connector
  • Bi-color status indicator
  • IP67 and IP69K rated (with appropriate connector boots)
  • RoHS compliant
  • Multiple programming options available via user-programmable software tool provided or custom application programming, both of which are provided by Marlin
  • Built to withstand harsh temperatures, shock and vibration, moisture and electrical transients
  • 8-36V DC operating range, reverse polarity protected
  • Operating temperature range of-40-85 C (-40-185 F)
