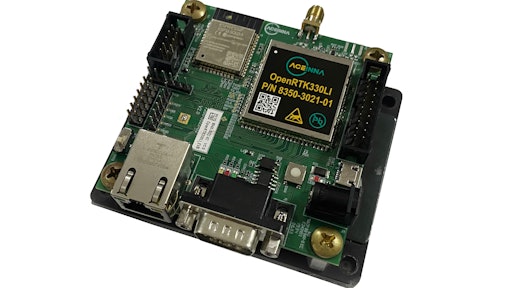

ACEINNA announces the availability of the ACEINNA OpenRTK330L, a low cost, state-of-the-art, high-performance triple-band RTK/GNSS receiver with built-in triple redundant inertial sensors.
- Designed to replace expensive and bulky precision RTK/INS systems
- Compact navigation solution
- Meets the challenging performance, reliability and cost requirements of various applications including those of construction and agriculture applications
- Includes triple-band RTK/GNSS receiver coupled with redundant inertial sensor arrays to provide centimeter-level accuracy, enhanced reliability, and superior performance during GNSS outages
- OpenRTK Precise Positioning Engine optimizes satellite tracking
- High RTK fixes rates while integrating seamlessly with ACEINNA's open-source, developer-friendly Open Navigation Platform
- Integrates precise 2 Degree/Hour IMU to offer 10-30 seconds of high accuracy localization during full GNSS denial, enabling autonomous system developers to safely deliver highly accurate localization and position capabilities
- Embedded Ethernet interface allows easy and direct connection to GNSS correction networks around the world
- CANbus interface allows simple integration into existing vehicle architectures
- Monitors all global constellations (GPS, GLONASS, BeiDou, Galileo, QZSS, NAVIC, SBAS) and simultaneously tracks up to 80 channels
- Includes RF and baseband support for the L1, L2, and L5 GPS bands and their international constellation signal equivalents
- Inertial measurement unit (IMU) and dead reckoning function contains a total of nine accelerometer and nine rate gyro channels based on ACEINNA's triple redundant 6-Axis IMU array
- Integrating triple-redundant IMU array allows recognition and utilization of only valid sensor data, ensuring high-accuracy protection limits and certifiability under ISO26262 standards
- IMU sensor array includes a triple-redundant, 3-axis MEMS angular rate sensor, and a triple-redundant, 3-axis MEMS Accelerometer
- Operating temperature range of -40-85 C (-40-185 F)
- Open Navigation Platform allows custom embedded application development
- Autonomous solution developers have full access to all resources on the OpenRTK330L module including the GNSS receiver measurement data, IMU measurement data and all interfaces
- Qualified to standard automotive shock and vibration levels.
