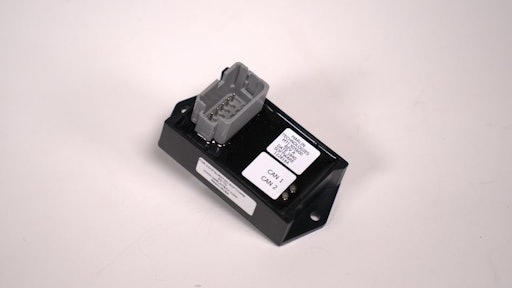

The M-Flex CAN Bridge from Marlin Technologies is a two-channel CANbus bridge for interconnecting two CANbus networks.
- Built to withstand harsh temperatures, shock and vibration, moisture and electrical transients of harsh operating environments
- Designed for 12 and 24V applications
- 8-16V DC operating range (12V DC nominal) with reverse polarity protection
- Operate as a bridge and node simultaneously
- Each channel configurable for 250K bits/s or 500 K bits/s
- Each channel has 20 filters to pass or block messages based on the entire CAN ID, J1939 PGN or J1939 Source Address
- SAE J1939 compliant, Standard and Extend Identifier
- Configurable using M-Flex CAN Bridge User Interface software
- Two diagnostic LED’s for CANbus communication status
- Beacon indicator for identifying Bridge module when multiple bridges used on a network
- Wide Operating Temperature from -40-85 C (-40-185 F)
- Deutsch DT style connector
- IP67 submersion and IP69K pressure wash rated (>15 degree nozzle and with appropriate boot)
- RoHS and CE compliant
- Designed for severe-duty, outdoor mobile applications, including construction, agriculture and other off-highway equipment
