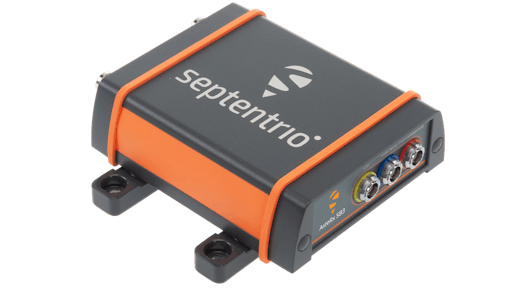

Septentrio AsteRx SB3 GNSS Receivers

AsteRx SB3 GNSS receivers offer optimal availability of RTK high-accuracy positioning due to its ability to track a wide variety of signals from all currently operating Global Navigation Satellite Systems.

Septentrio Aste Rx Sb3 Pro Ruggedized Gnss Receiver
Septentrio
Septentrio Rgb

Septentrio announces the launch of the AsteRx SB3 GNSS receiver family, enclosed in an IP68 housing.

  • Uses triple-frequency tracking to maximize robustness and availability of its heading angles
  • Offers optimal availability of RTK high-accuracy positioning due to ability to track a wide variety of signals from all currently operating Global Navigation Satellite Systems (GNSS)
  • Tracks signals for GPS, GLONASS, European Galileo and Chinese BeiDou
  • Uses triple-frequency tracking to maximize robustness and availability of its heading angles even in dual antenna mode
  • Compact and rugged enclosure design
  • Fully certified and ready to use
  • Plug and play device which allows customers to have fully operational system within minutes
  • Includes two types of receivers, both offering triple-band sub-degree GNSS heading
  • AsteRx SB3 Pro is a high-performance rover* receiver featuring the latest core GNSS+ algorithms for maximal reliability and availability in challenging environments, such as near high structures or under foliage
  • AsteRx SB3 Pro+ adds value to the Pro version with base station functionality and internal logging
  • AsteRx SB3 Pro+ offers higher update rates and ultra-low latency, important factors for fast moving vehicles or mechanical components in automation or guidance systems
  • Pin-to-pin compatible with Septentrio’s AsteRx SB ProDirect receiver and the AsteRx SBi3 GNSS/INS system, making it simple to change receivers

*A rover receiver, unlike a base station, is a receiver on the move. This type of receiver calculates its position with centimeter-level accuracy by analyzing signals from various GNSS satellites and by using correction information from base station receivers.

Construction Septentrio Aste Rx Sb3 Pro(+) Ruggedized Gps Gnss ReceiverSeptentrio
