Renishaw Introduces RenAM 500M Additive System Designed for Serialized Production

Renishaw's RenAM 500M includes in-line sieving which allows powder to be recycled and re-used in a single process under an inert atmosphere, reducing user interaction and turnaround time.

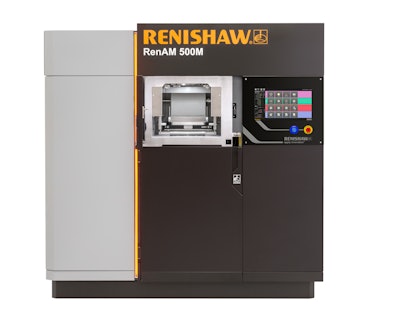

Ren Am 500 M Front Open Build Chamber
Rn 2307highres D4v 5vnoffjqw

Designed and engineered with serialized production in mind, the Renishaw RenAM 500M builds complex metallic components directly from CAD using metal powder bed fusion technology. The RenAM 500M is first in a family of products based around Renishaw’s optical systems and control technology and offers unparalleled engineering with efficient, ergonomic design and safety features, as well as intuitive and automated capabilities.

Renishaw has core skills in optical engineering, motion control and manufacturing from over 40 years of producing industrial high-technology products. The RenAM 500M builds on the advantages of the Renishaw AM system platform with over 10 years of metal powder bed fusion development and experience and state-of-the-art manufacturing expertise. The machine manufactures parts within the 250 mm x 250 mm x 350 mm build volume (9.84 x 9.84 x 13.77 in.) and utilizes a high powered ytterbium fiber laser to fuse fine metallic powders together creating functional three-dimensional parts.

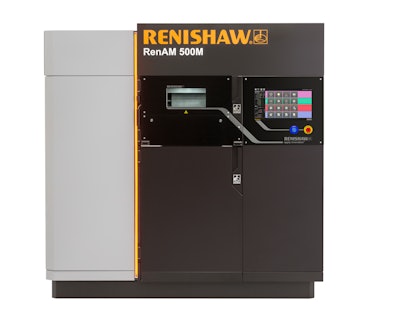

In-line sieving allows powder to be recycled and re-used in a single process under an inert atmosphere, reducing user interaction and turnaround time. Metallic powder is loaded into the machine hopper at the front of the system and sieved ultrasonically. Any un-melted material is returned to the hopper and passes through the ultrasonic sieve before being processed. Sieved powder is pneumatically transferred in a flow of high purity argon gas into the powder delivery silo. Am500 M Front All Closed

The RenAM 500M features a patented high capacity twin SafeChange filter system enabling builds to run for long periods in a stable and controlled atmosphere. Filters capture process emissions safely and efficiently and the machine’s intelligent control system actively senses the filter’s condition and redirects the gas circuit to a clean filter before conditions deteriorate. Powder sieving and recirculation are automatically carried out within the compact system, reducing the need for manual handling and exposure to materials, which provides increased safety and sustained quality of the metal powders.

The RenAM 500M is ideal for industrial production application, specifically serialized production. Each system can be dedicated to a single material type for a lights-out manufacturing environment, providing high-level automation.

Inherently intuitive, the large 480 mm (19 in.), durable touchscreen and machine control software allows for ease of navigation through every process step. Based on a Windows operating system with a dedicated user interface, large icons show the build set-up workflow for clear and straightforward operation. Specifically developed to accept future upgrades – a characteristic prevalent throughout all of Renishaw’s product lines – ensuring that every machine provides a pathway to future performance updates.
