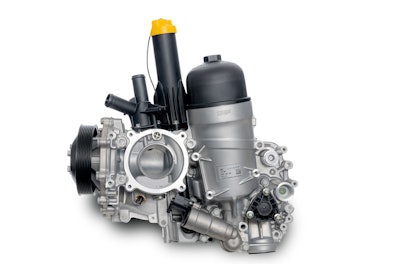

Hengst Oil-Coolant Module

The oil-coolant module is designed provides greater sturdiness against pressure and pulsation and improves Delta P performance by 30%.

Oil Coolant Module
Oil Coolant Module
Hengst

Hengst’s oil-coolant module provides enhanced filtration properties that result in extended service intervals of up to 150,000 km (93,205.68 mi.).

  • Offers high functional density resulting in reduced fuel consumption
  • Used in numerous heavy-duty engines
  • Equipped with an optimized stack filter
  • High functional density consists of oil filtration, oil-water-heat management, water pump and an oil pressure regulating valve
  • Smart interface integration reduces number of parts, making the module 10% lighter than predecessor model
  • Oil thermostat has been incorporated directly into the housing
  • Topology-optimized design provides greater sturdiness against pressure and pulsation and improves Delta P performance by 30%
  • Uses latest generation stack filter to achieve increase in oil differential pressure that causes the filter bypass valve to open later, resulting in a boost in filtration performance
  • Stack filter includes Hengst’s partially synthetic medium
  • Special intermediate plates are embedded in the filter insert which shorten the pleats, giving a boost to stability
  • Intermediate plates keep the pleats open, keeping differential pressure and filtration performance at optimum levels
