Hatz to Present New 3-cylinder Engine at bauma 2016

During bauma, Hatz will exhibit its complete lineup of engines up to 56 kW which will include its new water-cooled, 3-cylinder 3H50 engine.

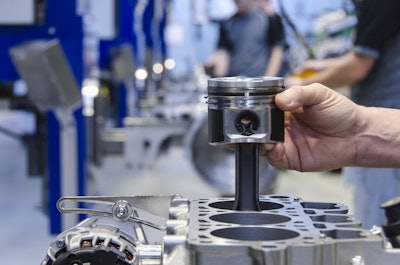

The first Hatz 3H50 engines are currently being assembled.
The first Hatz 3H50 engines are currently being assembled.
Hatz Thumb 10933084

From April 11-17, visitors at bauma 2016 in Munich will not only see the world premiere of the water-cooled 3-cylinder engines of the current H family, available as from 2018 respectively 2019, at the Hatz stands. Furthermore, the German engine manufacturer will present future orientated solutions around the proposed emission standard EU Stage V in regard to the year 2019. Hatz Systems will introduce modern generator sets and hydraulic power packs, as well. The exhibition stands are located in hall A4 number 548 and on the courtyard 4‑5A stand 9.

World premiere 3H50: The 3-cylinders of the new H Series

Besides the already existing water-cooled Hatz 4H50 engines, there also will be 3-cylinders available in the future. For an optimal combustion process, best operating characteristics and reduced emissions they are also equipped with the Bosch common rail technology – maximum injection pressure 1,800 bar – similar to the successful 4-cylinders. For the first time, this system is used in an off-highway diesel engine with 3-cylinders. Thanks to the turbo charger and the intercooler, the engines have a maximum torque of 185 Nm (at 1,600-2,000 rpm) and a maximum power of 42 kW. This all requires an installation space of a quarter of a cubic meter only.

With a capacity of 1.5 liters and a maximum speed of 2,800 rpm, this 3-cylinder engine sets standards. Furthermore, an additional PTO is added to the H family with this engine.

First 3-cylinders available in series production from 2018

Following the family concepts, the various 3-cylinder versions are also orientated on the currently valid and future emissions standards. The Hatz 3H50TI does not need any exhaust aftertreatment and reaches the standards EU Stage IIIA and EPA Tier 4 Interim in the power range 19-37 kW.

The Hatz engine 3H50TIC in particular is designed for the U.S. market, Canada and some Asian countries. In order to comply with the exhaust emission standards EPA Tier 4 Final (19-56 kW) and EU Stage IIIB (37-56 kW), a combination of external exhaust gas recirculation (EGR) and diesel oxidation catalyst (DOC) guarantees the necessary reduction of exhaust emissions. Both engine variants will extend the Hatz engine product range from 2018.

Engine concept of H‑series has proven its reliability

All engines of the H engine family, which was introduced in January 2014, are characterized by an innovative concept, the most compact dimensions of its class, the exclusive use of premium components, as well as the production in Germany. Therefore, a long service life which is typical for Hatz products is ensured for these unique power packages.

“The weight and consumption values are lower than those of any other engine of this class. This could be achieved, among others, thanks to the iHACS technology (intelligent Hatz Advanced Combustion Strategy) with its sophisticated combustion chamber geometry, Bosch injection technology, minimized friction and a charge air pressure of 1.7 bar,” explains Christian Hatz, Managing Director Research & Development at Hatz. Even without diesel particulate filters, this unique technology also enables the engines to comply with the current exhaust emission standards and assures a performance at reduced noise and vibration levels.

All advantages of the H Series will be presented for the first time to interested visitors at bauma during an engine live demonstration at the outdoor stand.

Developed for EU Stage V

For more than 100 years, an optimal combustion strategy and sustainable development concept have enabled Hatz to produce particularly compact air- and water-cooled engines which are unequalled. Today, Motorenfabrik Hatz is the only manufacturer worldwide providing a complete Tier 4 Final certified engine range up to 19 kW. “The future requirements of the EU standard Stage V up to 19 kW are exceeded. For a long time, these small engines which are certified for the U.S. market, have been sold in Europe without any legislative pressure in the European market,” emphasizes Hatz. “Therefore, the European legislation is adjusted to our standards. Nothing will change for our customers.”

For the H family, Motorenfabrik Hatz expected the stricter regulations concerning a diesel particulate filter (DPF) at higher power classes and designed the engines accordingly from the beginning. In the meantime, Hatz has gained several years’ experience, among others, with the application of the engine 4H50TIC-DPF and other DPF engines.

“At bauma, we will present the EU Stage V solutions Hatz 3H50TICD and 4H50TICD which will be launched in the market well before the introduction of the new exhaust emission legislation in 2019,” says Wolfram Hatz, Commercial Managing Director at Hatz. “Field tests with customers of the H Series who will use the new Stage V engines from 2019 have already been carried out.”

Hatz Systems presents forward-looking power packs

In addition, Hatz System will present two new finished products which all make use of the advantages of the new water-cooled engine series. The silent canopied machines, which both convince with a noise level of less than 65 dB (A) at 7 m distance and with the best fuel economy in this power class on the market, will be presented at the outdoor stand. Equipped with the engine Hatz 4H50TI at 1,500 rpm, the newest generating set Hatz HEA‑27TDCW5 produces 27 kVA at 50 hertz and 400V and complies to the current standard EU Stage IIIA; stricter emission levels are optionally available with other engine versions. The set is available as emergency standby and continuous power supply versions and with its robust frame and canopy, it is even suitable for the rental market. The second new product release is a worldwide unique hydraulic power pack. With the EU Stage IIIB engine Hatz 4H50TIC, the new Hatz HAA‑25HDCW supplies 25 kW of hydraulic power. The modularly designed power pack is completely piped and includes all necessary hydraulic components such as a 120 l tank, filters, oil cooler with fan, manifold valve and alternatively a gear pump or a axial piston pump. Different hydraulic circuits and an electric priority switch are available from the modular construction set.
