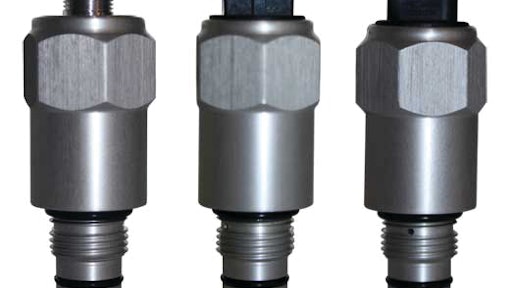

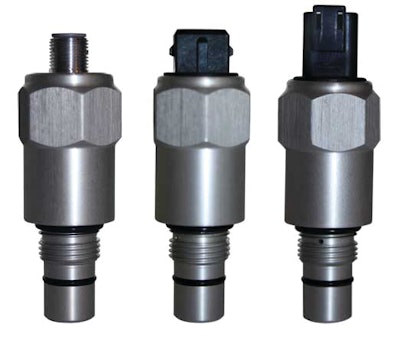

Schroeder Industries introduces its MS17, MS18 and MS19 Electrical Dirt Alarm Indicators for use with a wide range of Schroeder hydraulic filters.
- Provides accurate indication of the need to change an element, which maintains fluid cleanliness
- Sleek crimped body design, which consists of an Aluminum 2011-T-3 housing, eliminates need for four bolts, reducing cost and assembly time
- Thermal lock out option is available to prevent false indications during cold starts
- Complies with IP67 according to DIN40050 Standard
- Available Normally Open or Normally Closed, in both high and low current micro-switch designs
- Fits standard indicator port of most return line filters
- MS17 has four pin Brad Harrison connector, MS18 has two-pole AMP Junior Power Timer connector (AMP-JPT-P2) and MS19 has two-pole Deutsch connector (DT 04-2P)
- MS18 and MS19 are offered with a greater DC current range
- Suitable for mobile and industrial applications requiring connection of indicators with static working pressure of less than 6,000 psi (4,000 psi cyclic pressure per NFPA T2.6.1-R1-2005)
