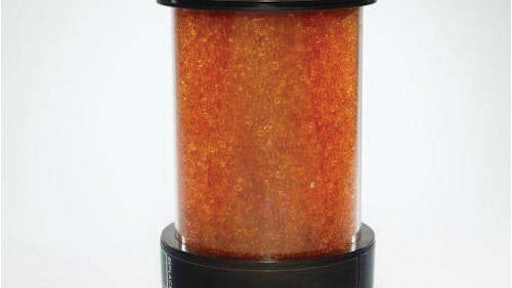

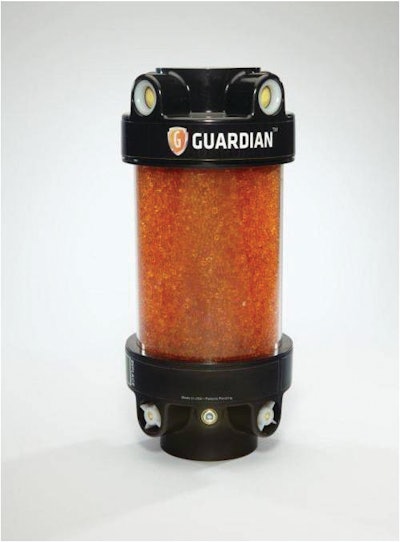

Guardian Desiccant Type Breather for Filters

Air Sentry introduces the Guardian desiccant type breather for improved filtration performance.

Airsentry Guardiandesiccantbre 10737264

Air Sentry introduces the Guardian desiccant type breather, manufactured with both particulate filters and desiccant, which is designed to help improve filter performance.

  • Provides more impact, temperature and chemical resistance and is also BPA free
  • Incoming air is directed through top of breather, filters and desiccant, but all exhaust air is expelled directly out to atmosphere, elongating life of desiccant and breather 60 to 70%
  • When breather is in static conditions (no air movement), check valves prevent ambient air from coming into contact with desiccant, further extending breather life
  • Machined and anodized aluminum insert molded directly into bottom cap provides strong base for mounting and
  • Aluminum insert allows for use of thread sealant for strong and watertight seal between reservoir and breather
  • Desiccant changes from gold to dark green to indicator when it cannot adsorb any additional moisture and needs to be replaced
  • Features replaceable center cartridge to help reduce replacement costs and environmental waste
  • Replaceable cartridge can be desiccant, molecular sieve, activated aluminum or activated carbon, depending on application needs
  • Optional Stack Ring allows multiple cartridges to be stacked atop each other for longer breather life and higher moisture removal capabilities
  • To prevent desiccant from becoming coated or saturated with oil, a stand pipe can be used to extend breather away from the reservoir or remote mount the breather
  • Isolation Check Valve available to eliminate complex mounting as well as prevent fumes, vapors and misting from backing up into breather
  • Color coded compound indicator is incorporated directly into breather and works on both intake and exhaust conditions
  • Provides 25 cfm of inlet air to reservoir and over 150 cfm of exhaust air flow, as air is directed out to atmosphere and not back through breather
  • Features modular platform for use in nearly any application
