SUCO 063X Series CANbus Pressure Transmitters

During bauma 2019, SUCO will exhibit its 063X Series CANbus pressure transmitters featuring stainless steel housings for durability in heavy-duty applications.

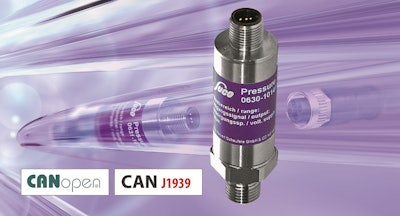

0630 series transmitter which supports the CANopen protocol.
0630 series transmitter which supports the CANopen protocol.

SUCO Robert Scheuffele GmbH & Co. KG has developed two CANbus transmitters which are part of its 063X Series, the 0630 and 0631.

  • Developed for operation in CANbus systems in mobile hydraulics, where many decentralized interfaces of electronic control systems are used
  • For pressure ranges from 0-1 to 0-600 bar (0-14.5 to 0-8702.3 psi)
  • Robust stainless steel housing 1.4301/AISI 304
  • Combines advantageous material properties of analog transmitters with advantages of digital transmission technology
  • Completely welded measuring cell made of stainless steel 1.4542 is particularly corrosion-resistant and guarantees media compatibility at temperatures from -40-125 C (-40-257 F)
  • IP67 protection ensures resistance to shocks and vibrations
  • Long-term stability and reliability with service life of up to 107 pulsations
  • For both models, values can be subsequently changed by customer on site using CAN programming software
  • Inclusion of CANopen protocol enables transmission of additional process and parameter data in real time (temperature, pressure values, error messages, operating status, time stamp) or setup of event-driven data transfers
  • Both CANopen and J1939 protocols enable interference-free serial data transmission
  • Integrated diagnostic function quickly eliminates interference signals and error sources

0630 series

  • Supports CANopen protocol (according to CiA DS-301) with data transmission rate of up to 1 Mbit/s which has established itself as the standard especially in the automotive and automation industry
  • Can either be specified with predefined values or according to customer requirements

0631 series

  • Based on J1939 protocol (according to SAE J1939), which is mainly used in heavy commercial vehicles and mobile machines
  • Currently available as pre-configured plug'n'play version at factory which can be installed directly in respective system without major effort
