Liebherr Piston Accumulators

Liebherr’s piston accumulators offer a wide selection of different oil and gas connections as well as an option to integrate a position transducer system.

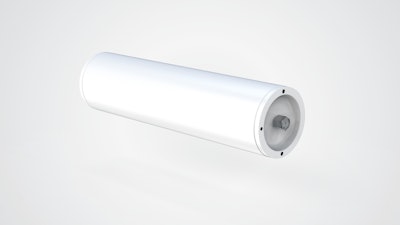

Liebherr Piston Accumulator 300dpi
Liebherr Components

Liebherr Components introduces a series production range of piston accumulators for the 250 and 350 bar (3,625.9 and 5,076.3 psi) pressure range.

  • Serves a wide range of applications
  • Can be used either as a single solution, or in conjunction with other hydraulic components as a system
  • Features low-maintenance and compact design
  • Diameters range from 100-360 mm (3.94-14.17 in.)
  • Oil volumes of up to 400 L (105.8 gal.) are possible
  • Meets country-specific requirements in line with PED 2014/68/EU and ASME Code Section VIII regulations
  • Offers a wide selection of different oil and gas connections
  • Option to integrate a position transducer system
  • Can be primed painted or coated for salt-water protection depending on requirements
  • Designed for both mobile and stationary applications
  • Can be applied for energy storage, for emergency operation, but also for as well as shock absorption
  • Can be integrated in vertical and horizontal installation positions
  • Withstands temperatures from -40-90 C (-40-194 F)
