CT Turbines 3-in-1 Sensor

Ctturbines3in1sensor 10058141
Webtec Logo Hi Res 5930b694cc87b

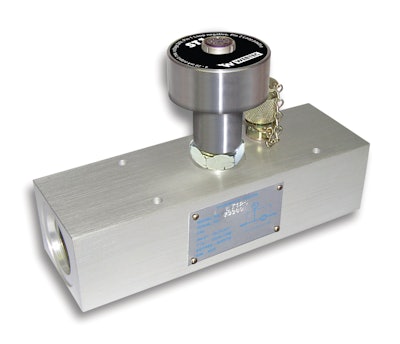

The CT turbine flow meter with conditioned output from Webster Instruments provides a complete solution to the flow measurement of hydraulic systems on test stands, machine tools and other fixed or mobile applications.

  • Flow: 0.25 - 400 gpm
  • Pressure: Up to 7000 psi
  • Accuracy: ± 1% of indicated reading over a wide range (Except for Pulse output)
  • Outputs: 4 - 20 mA (2 wire), 0 - 5 V (3 wire) or Pulse
  • Bi-directional operation
  • Fluids: Wide range of hydraulic oil, lubrication oils, and fuels
  • Calibration: 21 cSt as standard
  • Built-in micro-controller that conditions the signal from the flowmeter to provide an accurate linear analog output
  • Ideal tool for monitoring the performance of pumps, motors, valves and hydrostatic transmissions
