Grove Crane Helps Restore National Cathedral

A Grove crane has been helping to restore the National Cathedral in Washington, D.C., which suffered some damage during an earthquake in August.

National Cathedral1

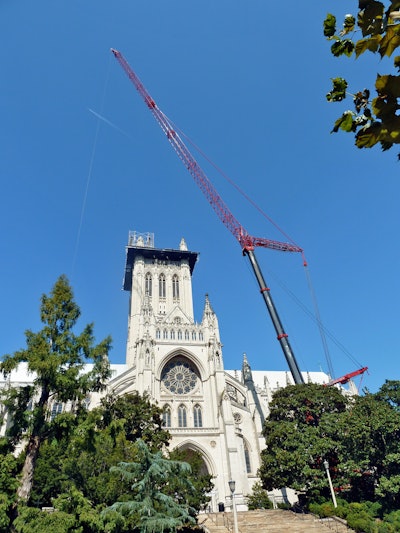

A Grove GMK7450 all-terrain crane with a MegaWingLift attachment helped with restoration work on the Washington National Cathedral in Washington, D.C. The cathedral sustained extensive damage in the magnitude-5.8 earthquake that shook the East Coast of the United States in August 2011.

W. O. Grubb Crane Rental, the lifting company contracted to help with the repair process, used the GMK7450 primarily for its high reach. Operator Jim Tracey says that despite the relatively light lifts, the company needed a high-capacity crane to avoid damaging the cathedral stairs and landscaping. The crane was positioned 230 ft. from the structure and had to reach up to 320 ft. to perform all the required lifts.

“The biggest challenge on this job was how far away we positioned the crane and also the height of the picks,” says Tracey. “There was no way to get in close to the building, so we needed a high-capacity crane that could reach across the grounds of the cathedral. The GMK7450 was a great choice.”

The crane was configured with 163 ft. of main boom and 260 ft. of luffing jib. It was fitted with full counterweight of 176 USt and configured with the MegaWingLift attachment. The boom assembly, supported by the Nelson boom launch trailer, took only 20 minutes to erect and the entire crane was set up in four hours. Roading of the GMK7450 was relatively easy. By removing the boom and the rear outrigger box, the crane was below 120,000 GVW and allows for easier permitting.

The MegaWingLift enhances the capacity of the GMK7450 by 60%, giving greater strength to the boom by avoiding side deflection.

For the restoration, the GMK7450 first helped assemble support beams for scaffolding around the upper portion of the cathedral. The scaffolding will provide access for stonemasons to repair the hand-carved limestone exterior.

Next, the crane removed four pinnacles from the top of the cathedral so they could undergo renovation on the ground. The pinnacles each weigh approximately 5,000 lbs. and were picked from a height of 320 ft. Restoration will take about a year, after which W. O. Grubb will return to lift the pinnacles back into place.

Tracey, who has been operating GMK7450 cranes since 2003, praised the crane’s reliability and easy-to-use ECOS electronic control system.

“The smooth operation of this crane is a major asset on jobs like this,” he says. “We’ve had this crane for three years and have come to rely on it extensively for sensitive lifts.”

Contractors are working to make the cathedral safe for the public in time for the consecration of the new bishop of Washington that will take place in mid-November. The cathedral typically receives more than 30,000 visitors per month.
