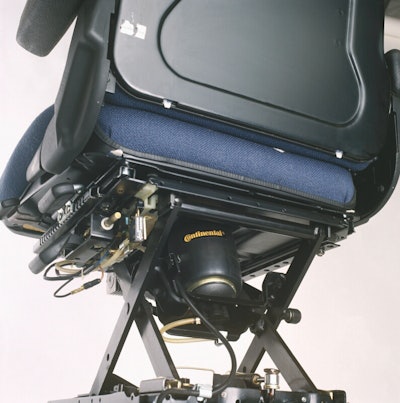

Seat Air Spring

Seats featuring air springs from ContiTech Air Spring Systems help provide a more comfortable ride for vehicle operators.

Seat Air Spring 11272865
Contitech Logo 11713 11243825

ContiTech Air Spring Systems' air-spring driver's seats give the operator's workplace a more ergonomic and comfortable design, thereby reducing fatigue and work-related health risks.

  • Features sleeve type air spring design
  • Compact construction enables easy integration into seat frame
  • Force is transmitted from seat backing to air spring via a control-sleeve lever or a so-called scissors construction
  • Working pressure levels between 43.5 and 101.5 psi (3 and 7 bar) maximum provides comfortable spring characteristic and infinitely adjustable seat height
  • Internal pressure is automatically adapted to specific weight of operator by means of a height-control valve
