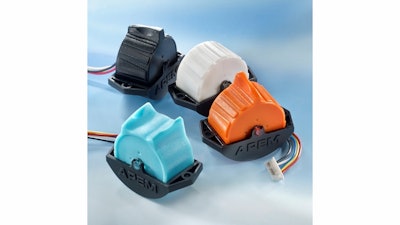

HR Series Thumbwheel

The HR Series Thumbwheel from APEM features non-contacting Hall-effect technology and is suited for integration into joystick handles and control grips.

Logo Apem 10933224

APEM Inc. announces the release of its HR Series Thumbhwheel.

  • Uses non-contacting Hall-effect technology to provide highly repeatable linear voltage output
  • For integration into joystick handles and control grips
  • Optimizes ergonomics and efficiency of control systems
  • Feature spring to center mechanism
  • Ergonomically designed for precision finger-tip control, making it well suited for repeated operations over long periods
  • Offers excellent proportional control, stable output, low noise and long life
  • Can be used in panel mount applications as well as joystick integration
  • Operates with a 5V DC power supply
  • Available with one of six output options
  • Operating temperature ranges from -30 to 70 C
  • Features return-to-center tolerance of +/-200mV
  • Electrical connections are provided via a 140 mm 28AWG wire harness fitted with a seven-pin Molex connector on the device for easy installation
  • Low profile design measuring only 18.25 mm above panel
  • Arching wheel design provides one axis of forward and backward movement
  • Utilizes two screws for easy rear panel mounting, and measures only 8.95 mm below panel
  • Wide range of configuration options available including wheel color, actuator style and LED backlighting
