FR Series Hall Effect Thumb Control

The FR Series thumb controllers from APEM feature IP69K environmental sealing for use in extreme environments.

Logo Apem 10933224

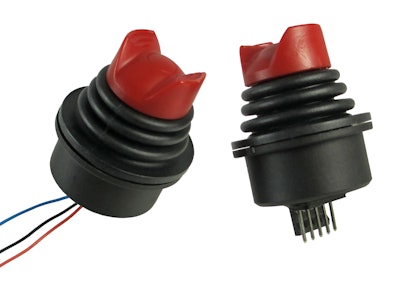

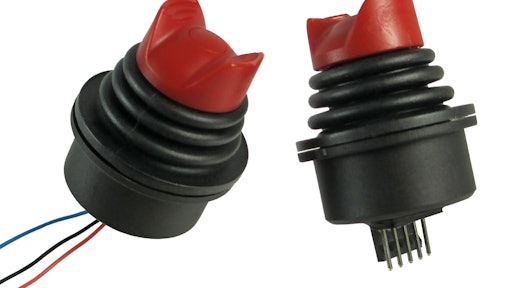

APEM Inc. introduces the FR Series of single axis, three position Hall effect thumb controllers designed for material handling and construction applications requiring a reliable device for “change direction” and “gear switching” functions.

  • Operates on 5V DC supply
  • Provides analog voltage output at each detent location
  • Features contactless Hall effect technology to provide long life performance
  • Available with single or redundant outputs
  • Rated up to three million full forward to back lifecycles
  • Environmentally sealed to IP69K
  • For operation in extreme temperatures from -40 to 85 C
  • May be specified with either 10 in. flying leads or a Molex 2.54 mm (0.100 in.) pitch connector in the bottom of the housing
  • Single output configurations feature a five position TE 3-647166-5 connector
  • Dual output configurations feature a seven position TE 3-647166-7 connector
  • Features wide range of configuration options including voltage output range, handle color and mounting style
